We have a wide selection of accessories for extraction arms
Accessories for arms
Many of the extraction arms are adapted to our customers’ special requirements.
Therefore we offer a variety of designs and accessories.
You will find some of the accessories for our extraction arms below. Do you have special requirements for your industrial ventilation? Please contact us and let’s talk about them.
Receive newsletter
LED light kit
LED light kit
Complete with a 5W LED bulb, net, switch, and transformer.
Ordering table
| Art No | Description |
|---|---|
| 01-172 | LED set R2 incl mesh – excl trafo, ø125 mm |
| 01-173 | LED set R2 incl mesh – excl trafo, ø160 mm + ø200 mm |
| 01-173A | LED set R3 – excl trafo, ø160 mm + ø200 mm |
| 01-179 | Trafo 70 W electronic, 12V |
Standard wall bracket
Standard wall bracket
Standard wall bracket for the WING and COMPACT arms, 260/280mm from the wall.
Ordering table
| Art No | Description |
|---|---|
| 01-540 | Wall console ø160 mm, 260 mm from wall |
| 01-541 | Wall console ø200 mm, 280 mm from wall |
Wall bracket
Wall bracket
Wall bracket for extension of the WING and COMPACT arms to 1000 mm from the wall.
Ordering table
| Art No | Description |
|---|---|
| 01-550 | Wall console 160mm, 1000mm from wall |
| 01-550A | Wall console 200mm, 1000mm from wall |
Extension arms
Extension arms
Extension arms 1 m for ASA-3 arm.
Ordering table
| Art No | Description |
|---|---|
| 10-260 | Extension arm 1m |
Extension arm
Extension arm
Geovent extension arms can be ordered in lengths from 2 to 5 meters in a straight (1-link) version or up to 4 m with double joints (2 links). The extension arm fits all our arms. It will be possible to obtain a total length of up to 9 meters. Special lengths are available on request.
The extension arm is supplied with piping and flexible joints. It is smoothly operated and easy to position due to the special design and use of cone bearings, framed flange bearings in the joints, and friction discs on the surface. This makes it possible to adjust the friction of the axes by simply adding or reducing tension.
Extension arms extend the WING, COMPACT, and ASA arms. When the WING and COMPACT arms are mounted in the mounting flange, it is possible to turn the arm 360°. When the ASA arms are mounted in the mounting flange, it is possible to turn the arm 270°. The arms are supplied as a kit and designed with focus on ease of installation and ease of use.
Ordering table
| Art No | Description |
|---|---|
| 01-181 | Extension arm 2m, 1-joint for ø160 mm, incl wall console, excl adapter |
| 01-181A | Extension arm 2m, 1-joint for ø200 mm, incl wall console, excl adapter |
| 01-182 | Extension arm 3m, 1-joint for ø160 mm, incl wall console, excl adapter |
| 01-182A | Extension arm 3m, 1-joint for ø200 mm, incl wall console, excl adapter |
| 01-183 | Extension arm 4m, 1-joint for ø160 mm, incl wall console, excl adapter |
| 01-183A | Extension arm 4m, 1-joint for ø200 mm, incl wall console, excl adapter |
| 01-184A | Extension arm 5m, 1-joint for ø200 mm, incl wall console, excl adapter |
| 01-186 | Extension arm 4m, 2-joint for ø160 mm, incl wall console, excl adapter |
| 01-186A | Extension arm 4m, 2-joint for ø200 mm, incl wall console, excl adapter |
| Smaller 2-joint extension arm can be made on request |
| Art No | Description |
|---|---|
| 01-195 | Adapter for extension arm – WING / COMPACT ø160 mm |
| 01-196 | Adapter for extension arm – WING / COMPACT ø200 mm |
| 01-197 | Adapter for extension arm – ASA, universal |
| 01-198 | Adapter for extension arm – ESA, universal |
Hoods
Hoods
The extraction hoods are made of aluminium or steel and powder coated in RAL 1007 as standard. The hoods can be equipped with a magnet which stabilizes their position on both horizontal and vertical surfaces close to the pollution source. The hoods are available in 160–200 mm.
Mini hood
Mini hood
The Mini hood is made of aluminium or steel and powder coated in RAL 1007 as standard.
The Mini hood is supplied in 80 and 100 mm.
Powder coated hood
Ordering table
| Art No | Description | Weight |
|---|---|---|
| 06-051 | MINI hood 80 mm with magnet | 0,65 kg |
| 06-052 | MINI hood 80 mm with magnet and tight damper | 0,65 kg |
| 06-053 | MINI hood 100 mm with magnet | 0,65 kg |
| 06-054 | MINI hood 100 mm with magnet and tight damper | 0,65 kg |
Extraction hoods
Extraction hoods
The extraction hoods are made of aluminium or steel and powder coated in RAL 1007 as standard. The hoods can be equipped with a magnet which stabilizes their position on both horizontal and vertical surfaces close to the pollution source. The hoods are available in ø80, ø100 and ø125 mm.
Powder coated hood.
Ordering table
| Art No | Description | Weight |
|---|---|---|
| 06-014 | Hood 80mm with magnet | 1 kg |
| 06-015 | Welding hood ø80 with magnet and tight damper | 1,2 kg |
| 06-020 | Hood 100mm with magnet | 1,1 kg |
| 06-021 | Hood 100mm with magnet and tight damper | 1,3 kg |
| 06-025 | Hood 125mm with magnet | 1,3 kg |
| 06-026 | Hood 125mm with magnet and tight damper | 1,5 kg |
Hood with LED set R2
Hood with LED light set R2
The extraction hoods are made of aluminium or steel and powder coated in RAL 1007 as standard. The hoods are supplied with light and delivered in 125 mm.
Powder coated hood with LED set R2.
Ordering table
| Art No | Description |
|---|---|
| 01-172 | LED set R2 incl mesh – excl trafo, ø125 mm |
| 01-173 | LED set R2 incl mesh – excl trafo, ø160 mm + ø200 mm |
| 01-173A | LED set R3 – excl trafo, ø160 mm + ø200 mm |
| 01-179 | Trafo 70 W electronic, 12V |
Transparent polycarbonate hood
Transparent polycarbonate hood
The polycarbonate hoods are available in 280, 380, 500 mm with connection in 100, 125, 160, or 200 mm*. They are all available with a tight damper. The damper must be ordered separately.
*Only applies to 500 and 380 mm.
Ordering table
Transparent polycarbonate hood 500 mm
| Art No | Description |
|---|---|
| 01-568 | 100 mm connection |
| 01-569 | 125 mm connection |
| 01-548 | 160 mm connection |
| 01-549 | 200 mm connection |
Transparent polycarbonate hood 380 mm
| Art No | Description |
|---|---|
| 01-566 | 100 mm connection |
| 01-567 | 125 mm connection |
| 01-546 | 160 mm connection |
| 01-547 | 200 mm connection |
Transparent polycarbonate hood 280 mm
| Art No | Description |
|---|---|
| 01-564 | 100 mm connection |
| 01-565 | 125 mm connection |
| 01-545 | 160 mm connection |
For all polycarbonate hoods: Please state which arm it will be used for:
A: ASA (ex. 01-568A)
F: FLEXI (ex. 01-568F)
W: WING/COMPACT (ex. 01-568W)

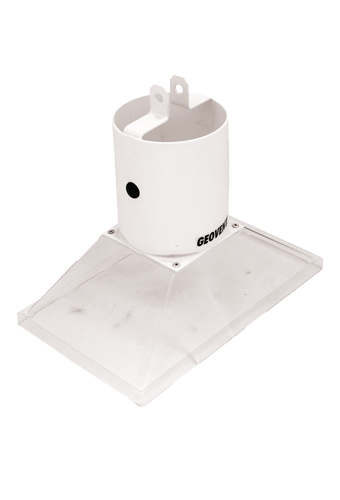

Square polycarbonate hood
Transparent polycarbonate hood
The polycarbonate hoods are available in 265 x 168 mm with connection in 100 or 125 mm. They are available with a tight damper. The damper must be ordered separately.
Ordering table
Transparent polycarbonate hood 265 x 168 mm
| Art No | Description |
|---|---|
| 01-558 | 100 mm connection |
| 01-559 | 125 mm connection Note: with reduction 100mm |
For all polycarbonate hoods: Please state which arm it will be used for:
A: ASA (ex. 01-568A)
F: Flexi (ex. 01-568F)
W: Wing/Compact (ex. 01-568W)
Square polycarbonate hood
Transparent polycarbonate hood 330 x 245 mm
The polycarbonate hoods are available in 330 x 245 mm with connection in 100 and 125 mm. They are available with a tight damper. The damper must be ordered separately.
Ordering table
Transparent polycarbonate hood 330 x 245 mm
| Art No | Description |
|---|---|
| 01-556 | 100 mm connection |
| 01-557 | 125 mm connection |
For all polycarbonate hoods: Please state which arm it will be used for:
A: ASA (ex. 01-568A)
F: FLEXI (ex. 01-568F)
W: WING/COMPACT (ex. 01-568W)
